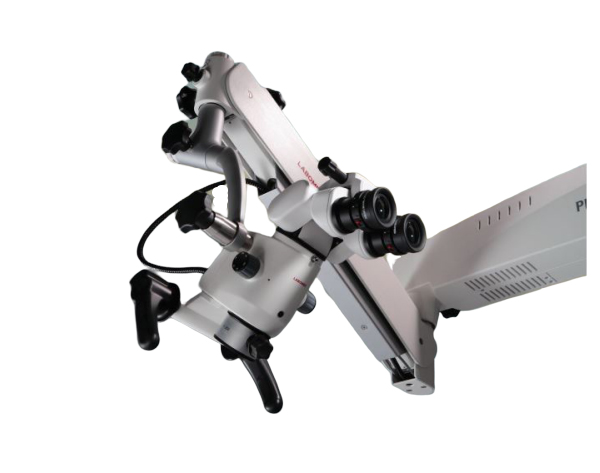

Cousin DNT: Dental microscope w/smart LED lighting system - LABOMED

Cousin DNT: Dental microscope with LED illumination system

Features of the Prima DNT Dental Microscope illumination system:

• LED (light-emitting diode) lighting system, whose light intensity is 100,000 lumens.
• The LED light is bright and cool enough to be used in various applications.
• Highly efficient 50W.
• Patented optical design and a 6 mm fiber optic cable.
• It offers a soft light with an amount of lumens equivalent to those emitted by a 150 W halogen bulb. It consumes less energy.
• It turns off automatically when folded into the storage position.
• It guarantees the right intensity by regulating it (neither too soft nor too strong) through a potentiometer with rotary control knob.
• The light it provides is free of flicker and variation.

Labomed DNT Microscope Technical Specifications

• To better fit the workspace of operating rooms such as outpatient clinics to surgeries, its design is compact.
• It has a robust H-shaped base and is located on swivel castors with a locking system. Pillar-mounted swivel arm.
• The lenses, prisms and reflective mirrors are coated with MAXLite multilayers, guiding the light beams more efficiently and avoiding the loss of intensity to a maximum.
• Five-fold lens changer with 0.4 x, 0.6 x, 1.0 x, 1.6 x, 2.5 x magnification
• The observation tubes are ergonomic binocular tubes with 0º - 210º inclination, IPD range 50-70 mm, F=170 mm.
• Objective lenses with f = 250 mm, manual fine focus control knob and sterilizable cap.
• Adjustable wide field eyepiece 10 x / 18 mm, with eye protection and diopter adjustment +5.
• 120º dental support.
• Filter holder, with yellow and green filters.
• Arm length: 110 cm
• The paint is anti-bacterial.
• The wheels are swivel and have a locking system.

Product Information:

• Manufacturer: Labomed
• Presentations available:
• Ceiling mounting
• Wall mounting
• Table-top mounting
• Floor mounting

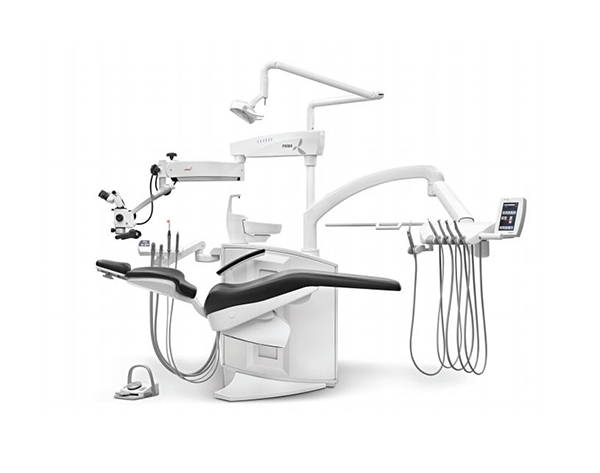

• Dental chair mounting.

Inaddition to these options, an extra long suspension arm (extension of ~250 mm) is available for more remote mounting options.
