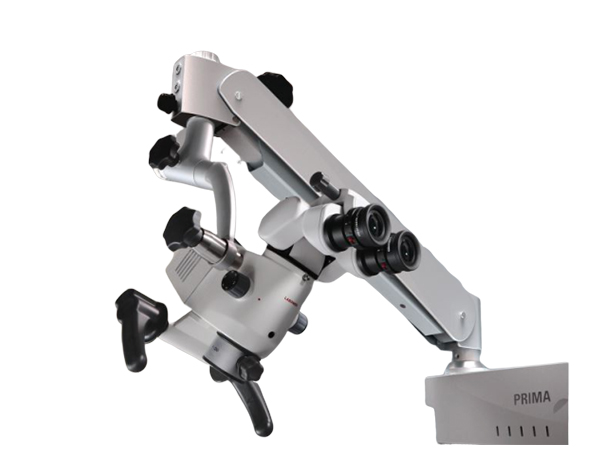

Prima Mµ: dental surgical microscope with LED illumination

Excellent optics with an efficient LED lighting system and a smooth mechanical arrangement integrated in its compact design, provides the best performance and maximum reliability in every use.

Advantages of the Prima Mµ Microscope

• A 3-step Galilean apochromatic optical system produces aberration-corrected images for all primary wavelengths.
• They have patented MaxLite coatings ™ which ensure anti-reflective and scratch-resistant properties, illuminating images uniformly.
• The LED lighting is 27 watts. It offers over 75,000 lux at a carefully selected color temperature of 3,700K.
• This LED lighting system is integrated, which guarantees a more compact equipment that works for more than 50,000 hours.

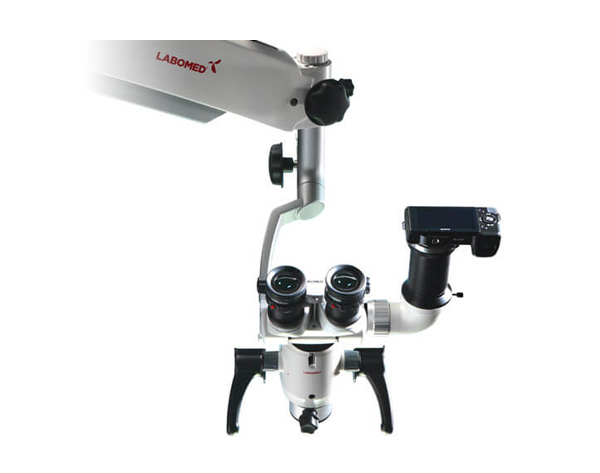

• To address digital documentation needs, a series of digital SLR, video camera and CCD adapters are available with ProLine ™ in addition to offering the patented iVu S5 online solution.

Features: versatility and performance of the Prima Mµ

• The observation head can be easily positioned with the help of the suspension arm.
• The advanced 3-step magnification changer allows optimal magnification for a particular surgery with three different magnifications.
• Prima Mμ can be configured for dental surgery with its tilting optical head and the NuVarTM CMO lens with variable focal length, between 300 mm and 400 mm.
• It facilitates the obtaining of excellent images and the comfortable working posture is the most suitable for dental procedures.
• Its centre of gravity is so low that it allows for stable, vibration-free visibility.
• Prima Mμ is ideal for situations where space is limited.

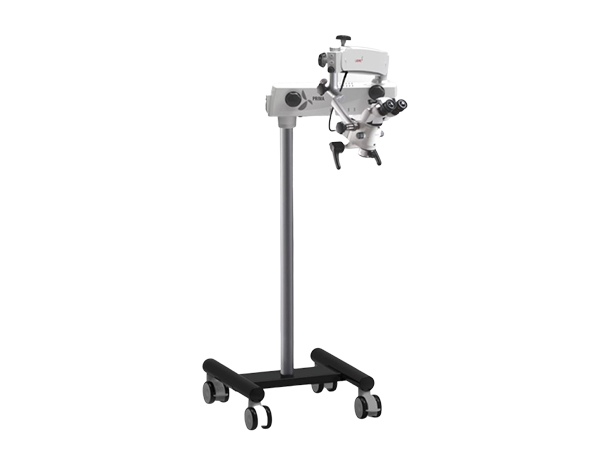

• To provide you with maximum comfort and best results, the microscope meets all needs as it can be mounted on a floor, wall or desk stand.
• Display of real colours and contrast.

Technical specifications of the Prima Mµ

• Binocular tubes: 45° tilted (standard), 0-210° tiltable, straight head (optional)
• Eyepieces: WF 10X / 18 mm with retractable eye protection, diopter adjustment ± 5 mm with diopter lock; optional: WF 12.5X / 18mm
• Apochromatic Magnichanger: 0.6X, 1.0X, 1.6X
• Lens: f-250 mm with fine focus (standard); Options: NuVar with f-300-400 mm focal length adjustment; f-300 mm or f-400 mm with fine focus; f-200 mm fixed lens; lens protector
• Light source: 27W LED / 75K lux
• Built-in filters: Green Yellow
• Vertical arm movement: 500 mm with energy-saving light cut-off in parking position
• Microscope holder movement: ± 155 °

Product Information:

• Mounting options: Floor, wall and ceiling mount.
• Manufacturer reference: Prima Mμ Dental 6211000
• Manufacturer: Labomed
